12' L X 12" W HD Ramps Aluminum Folding Smart Car Trailer Ramps, Plate End, Stub Foot - 2,000 lb. Per Axle
$1,494.99
MSRP
Key Features:
- Plate end connector with stub foot
- Aluminum construction with serrated rung traction
- Each ramp measures 12' L x 12" W x 4.25" H
Overview
Overview
Specifications
Length:
12'
Width:
12"
Height:
2"
Weight:
56 lbs. per ramp
Maximum Capacity:
2,000 lbs. per axle
Minimum Height:
4"
Maximum Height:
40"
Material:
Aluminum
Surface Type:
Rung
Foot Type:
Stub
Attaching End:
Plate
Color Description:
Metallic
Brand:
More Information

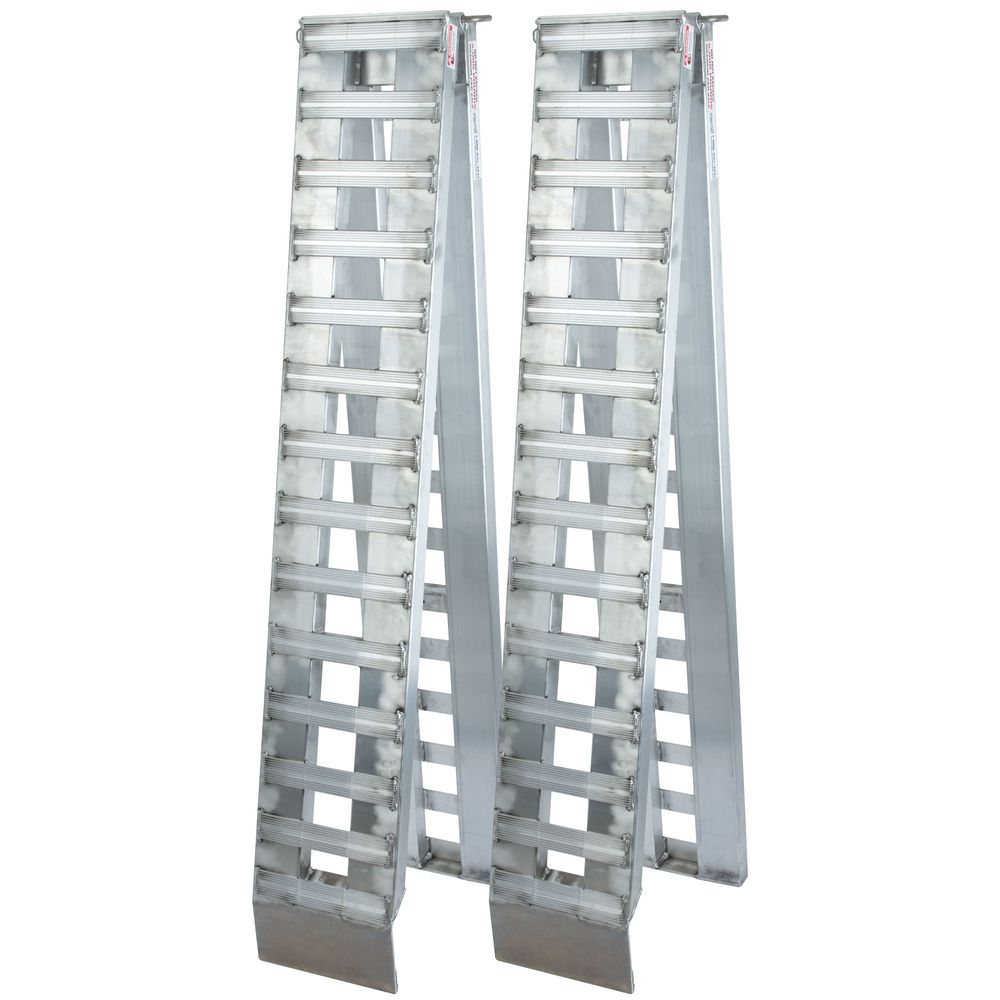

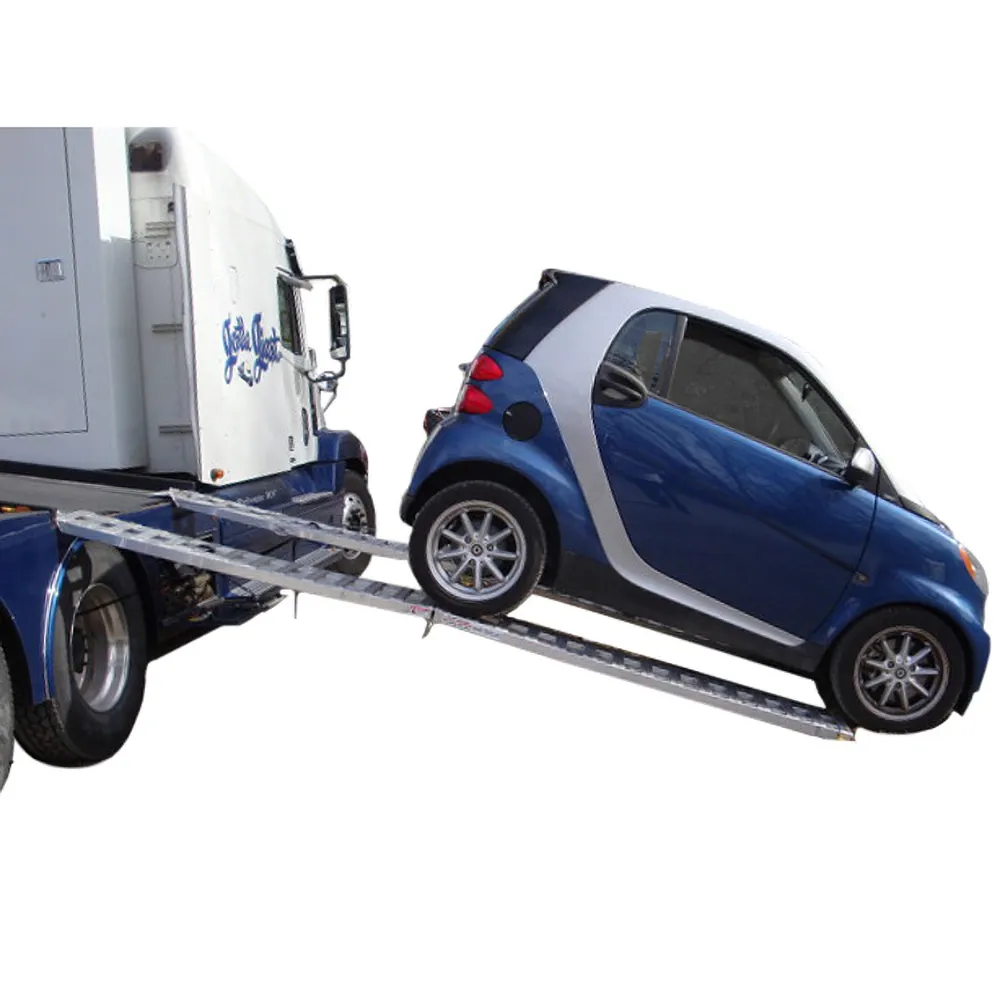

Load and haul cars, trucks and equipment onto trailers with this pair of lightweight 12' L aluminum smart car truck trailer ramps that feature a plate end and a stub foot with serrated rung traction.
Made in the USA, these ramps are constructed from lightweight aluminum and feature flat, serrated rungs that grip tires in wet, icy or other inclement conditions while allowing road debris, gravel and mud to pass through. The tops of the ramps have a hook-style connecting end that hooks over existing rub or round rails up to 1-5/16" diameter. The stub foot ramp ends offer greater versatility in loading heights.
Each ramp measures 12' L x 12" W x 4.25" H. At 56 lbs. per ramp, they are light enough to be maneuvered by one person for set-up, take down and storage. For correct use with the stub foot design, set up between 24" to 36" H.
- Plate end connector with stub foot
- Aluminum construction with serrated rung traction
- Each ramp measures 12' L x 12" W x 4.25" H
Usage Guidelines
Never exceed the maximum axle capacity of this system. Normally, the front end of the vehicle has the heaviest axle weight because of the engine location. Loading anything other than a smart car will void the warranty.
Features

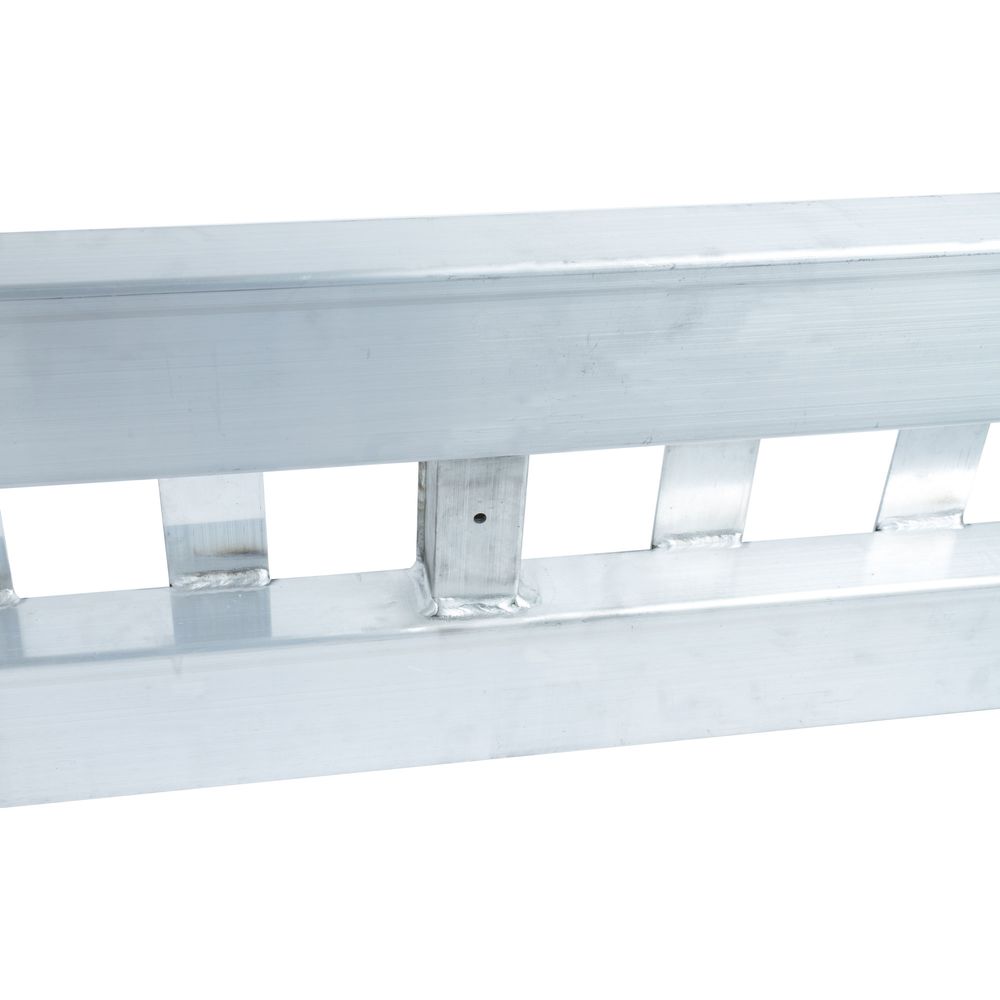

Serrated Rung Traction
Each flattened, welded rung is horizontally serrated for better water run-off and tire traction. Large pieces of debris pass straight through the open design.

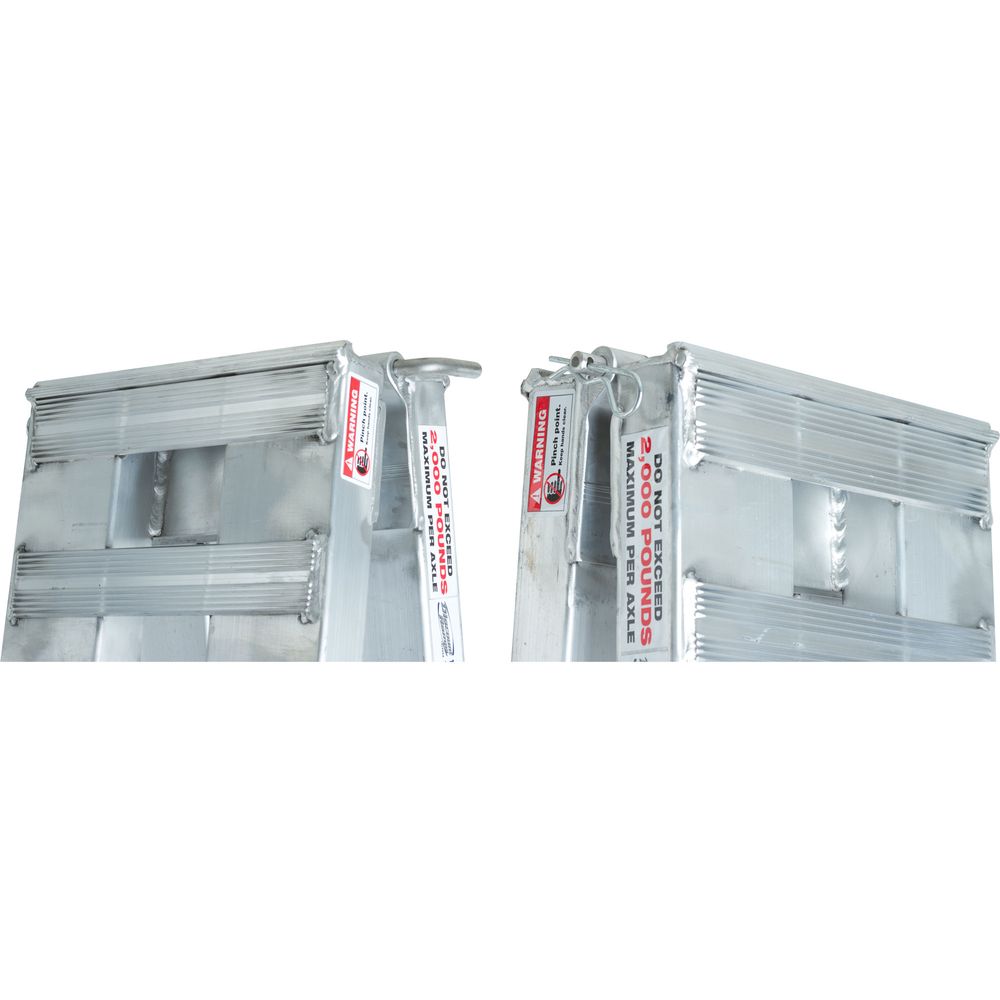

Plate End
Plate ends provide a smooth ramp-to-trailer transition, and are used in conjunction with safety tie-down straps to prevent kick-outs and keep the ramp firmly in place.
Stub Foot
For greater versatility in height range, the stub foot features a reinforced rectangular end that allows you to position the ramp at the angle you need without compromising the strength of the construction.
