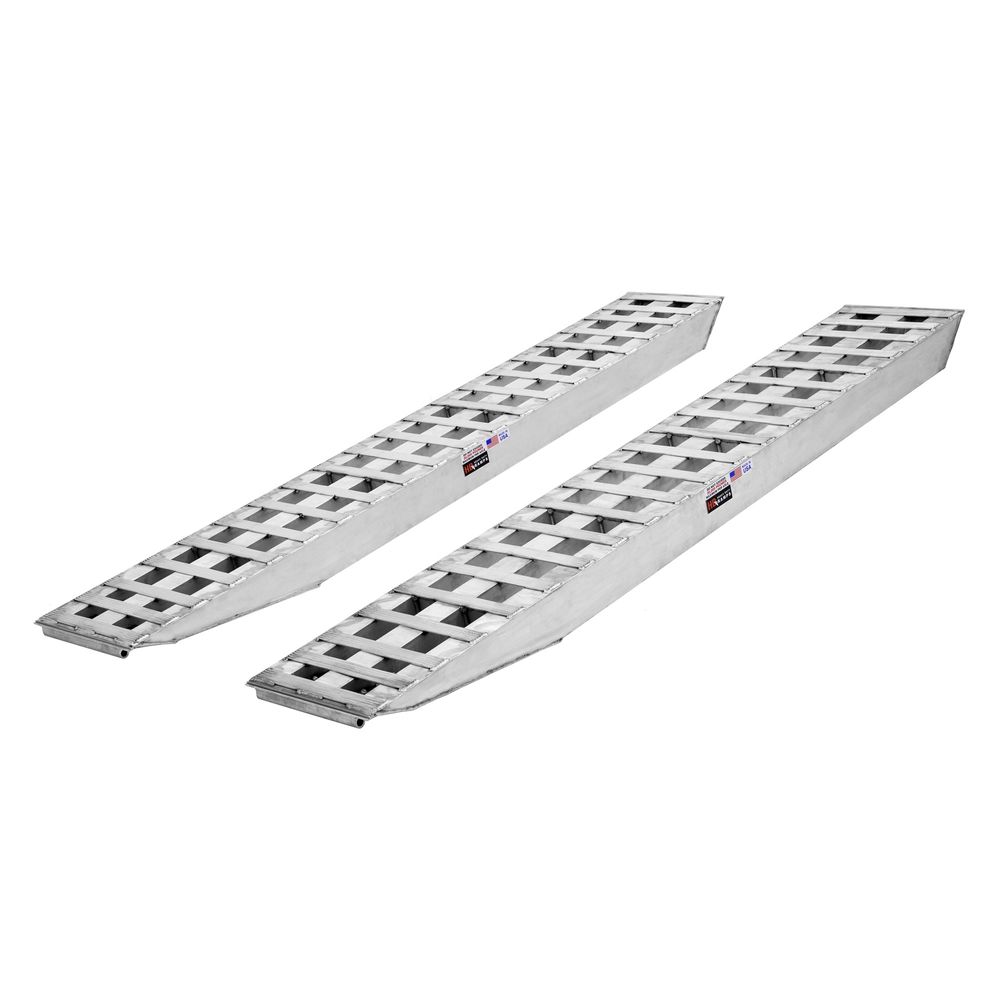

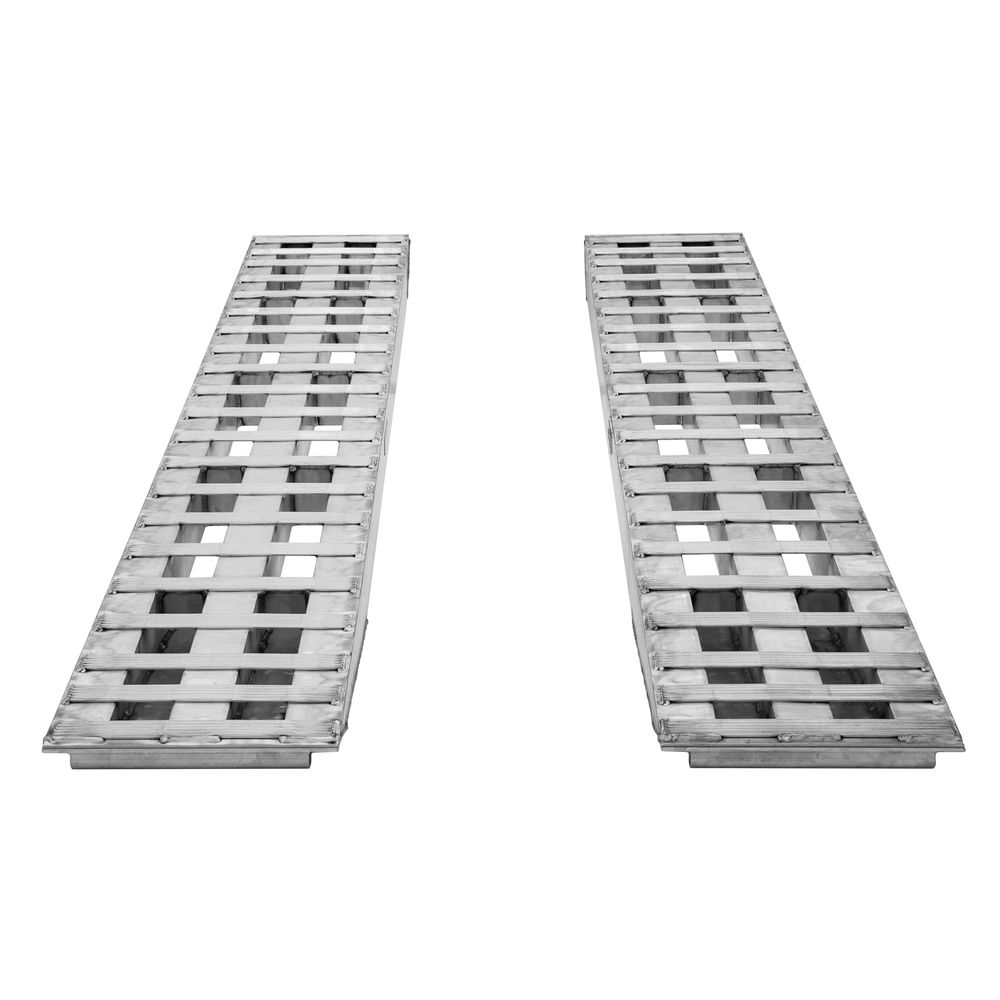

10' L x 20" W HD Ramps Heavy Equipment Ramps, Pin-On End, Pin-On Foot - 20,000 lb. per Axle
$2,874.99
MSRP
Key Features:
- Pin-on end connector with pin-on foot
- Aluminum construction

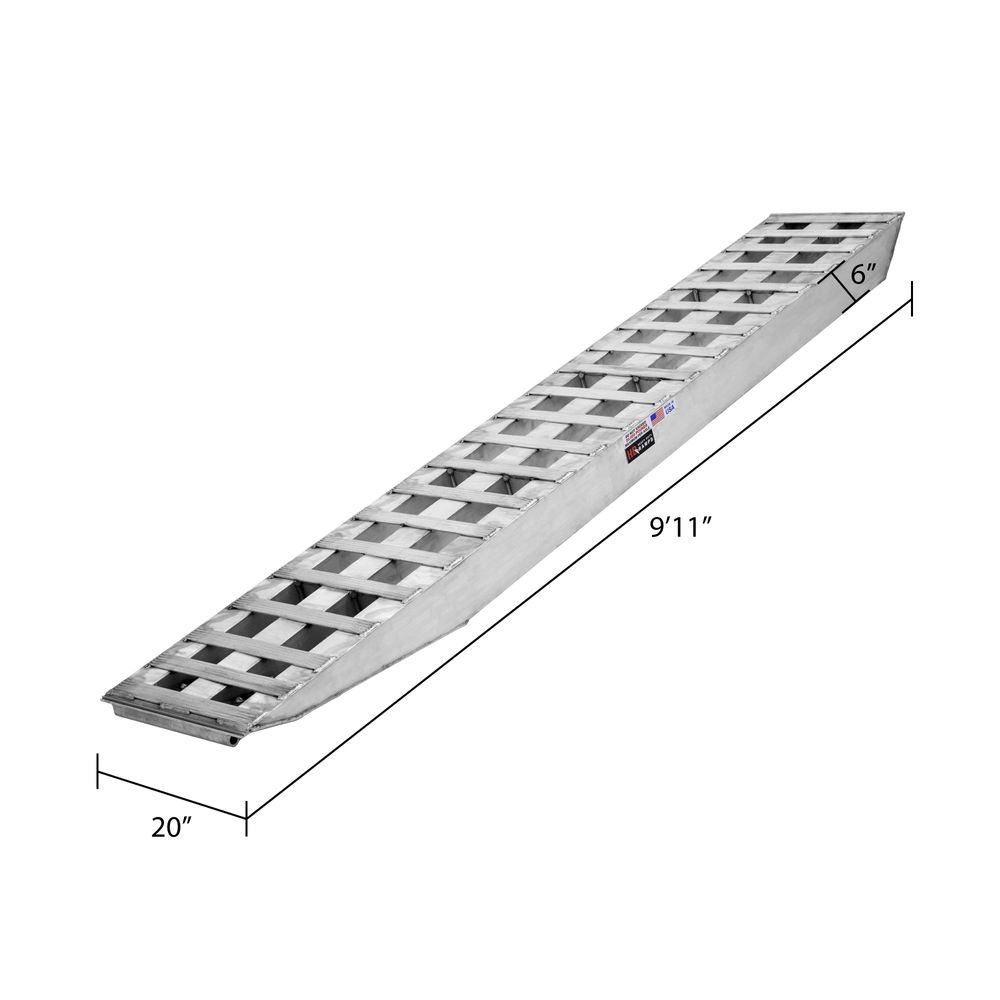

- Each ramp measures 10' L x 20" W
Overview
Overview
Specifications
Length:
10'
Width:
20"
Height:
6"
Weight:
240 lbs.
Maximum Capacity:
20,000 lbs. per axle
Minimum Height:
36"
Maximum Height:
42"
Material:
Aluminum
Surface Type:
Rung
Foot Type:
Stub
Attaching End:
Pin-On
Color Description:
Metallic
Brand:
More Information
These high-strength, heavy duty aluminum ramps are designed to load particularly heavy machinery with a weight capacity of 20,000 lbs. per axle. They work with rises between 36" and 42", and can be used with standard trailers as well as step decks.
The two-beam ramps feature extra wide, serrated rungs that provide maximum traction in the snow, rain, or heavy mud. The ramps attach to the trailer using a long pin and skid seats (sold separately) that are welded to the back ends of the trailer. Wall brackets are also available to allow users to drive loading equipment into basements. Both ends of the ramps are equipped with welded pin receiving tubes for bi-directional use.
- Pin-on end connector with pin-on foot
- Aluminum construction
- Each ramp measures 10' L x 20" W
Usage Guidelines
Not recommended for trucks with mounted cranes, forklifts, or steel track vehicles. Never exceed the maximum axle capacity of this ramp system. Normally the front end of the truck is the heaviest axle weight because of the engine.
Features

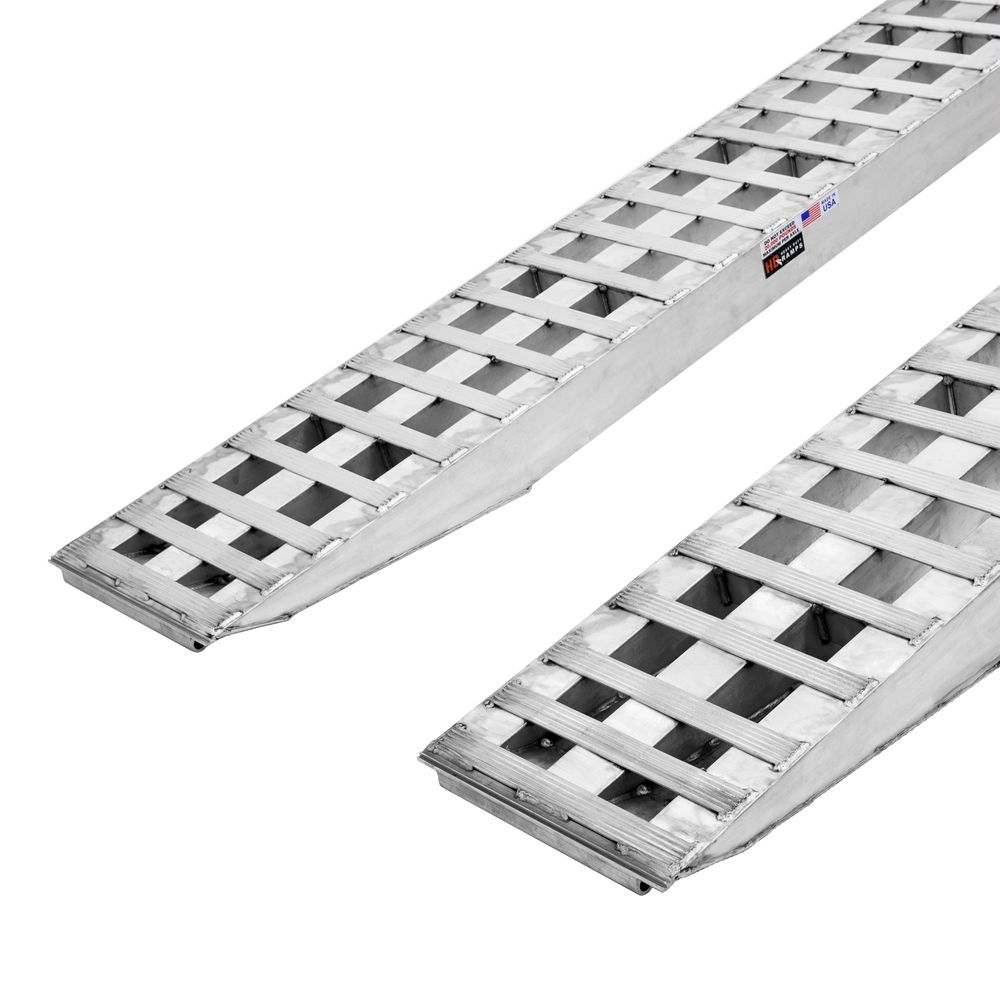

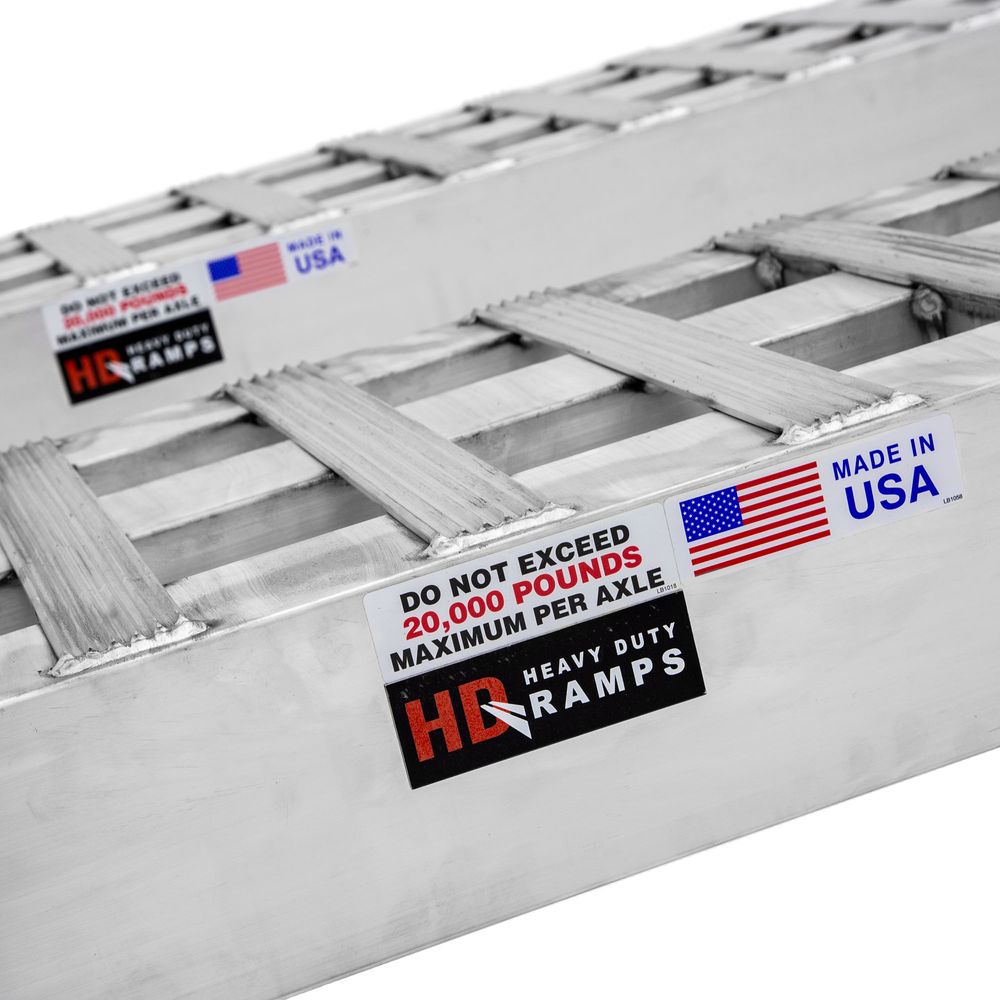

Serrated Rung Traction
Each flattened, welded rung is horizontally serrated for better water run-off and tire traction. Large pieces of debris pass straight through the open design.
Pin-On End
The most secure connection style for industrial and commercial ramps, pin-on ends have a hollow tube that rest in a pre-installed skid seat (sold separately). A pin or rod secures the ramp to the skid seat so it cannot slip off, fall out, or be removed without removing the pin.
