90" L x 27" W HD Ramps Adjustable Wheel Risers for Dual Wheels
$3,104.99
MSRP
Key Features:
- Levels trailers off at dock for easier, safer loading and unloading
- 90" L x 27" W for tandem axle, dual wheel applications
- Adjustable height range from 5" H to 12" H in 1" increments
Overview
Overview
Specifications
Length:
7' 11-1/2"
Width:
30-1/4"
Weight:
148 lbs.
Maximum Capacity:
40,000 lbs.
Minimum Height:
6-1/2"
Maximum Height:
13"
Ramp Length:
90"
Ramp Width:
27"
Material:
Aluminum
Brand:
More Information
The Adjustable Wheel Riser increases safety and ease of work at loading docks by raising up and leveling incoming trailers.
Manufactured from high-strength, lightweight aluminum, these 90" L wheel risers work with tandem axles, and are wide enough to accommodate 27" W dual wheels. The adjustable height design allows you to set the height from 5" to 12" in order to properly level off a trailer when backing it up to a loading dock.

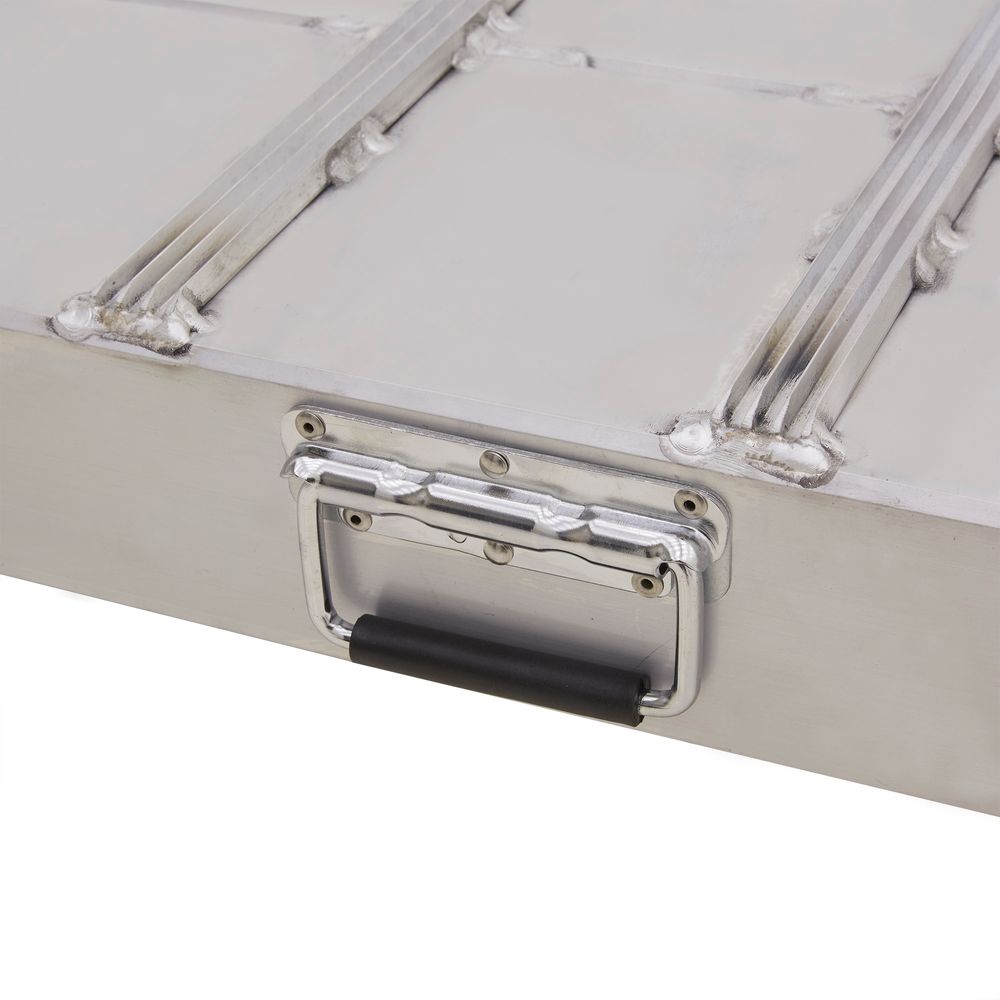

Sold in pairs, this set of two risers supports up to 40,000 lbs. and has serrated rungs built into the surface for maximum traction in inclement weather as well as icy conditions. Four stainless steel handles per riser provide hand grips for manually repositioning.
- Levels trailers off at dock for easier, safer loading and unloading
- 90" L x 27" W for tandem axle, dual wheel applications
- Adjustable height range from 5" H to 12" H in 1" increments
Usage Guidelines
Please note that these risers are not intended for loading vehicles onto RGN lowboy trailers and using them in that application will void the warranty.
Features

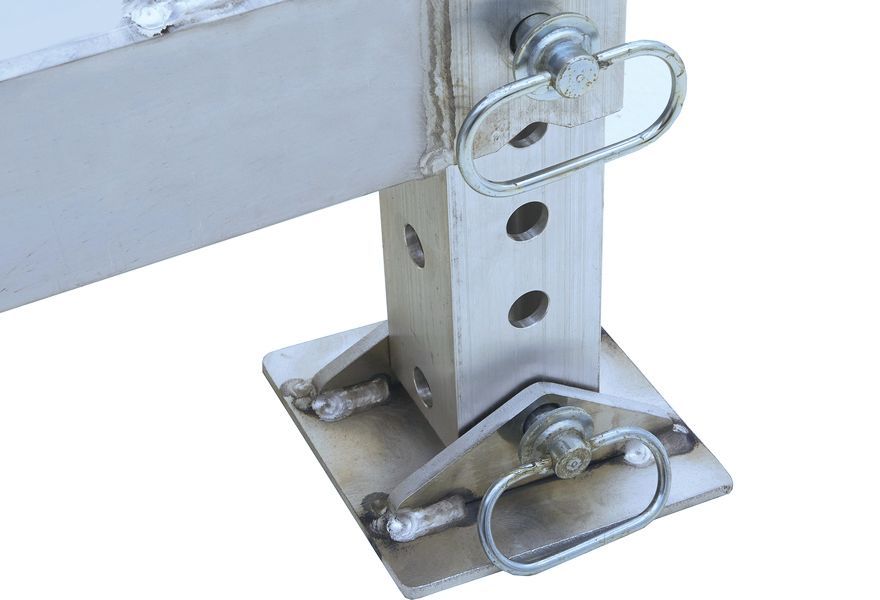

Set height from 5" to 12" on 1" increments

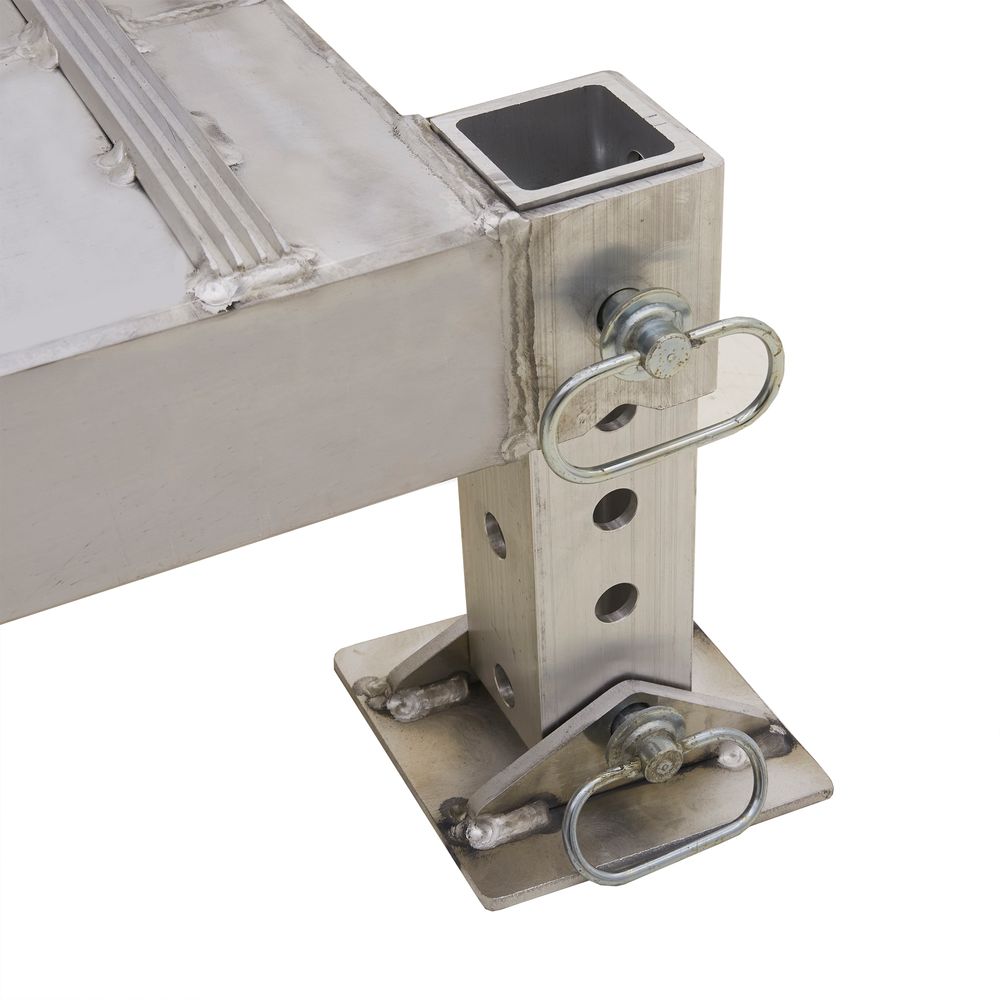

Perfect for when you need to adjust the height to accommodate a particular trailer, the height adjusts on the riser stand using pins. The 7" height range also allows you to move the risers between loading docks, which is convenient if your facility is older and the concrete has settled.

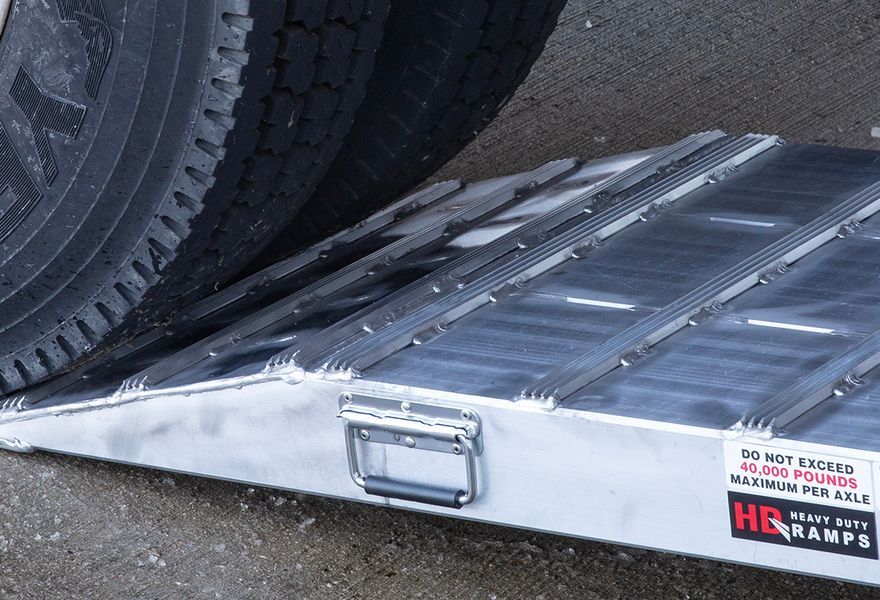

Serrated rungs add traction so wheels grip better
The serrated rungs allow wheels to cut through snow and ice, and channel water away so that tires stay firmly on the riser during inclement weather.

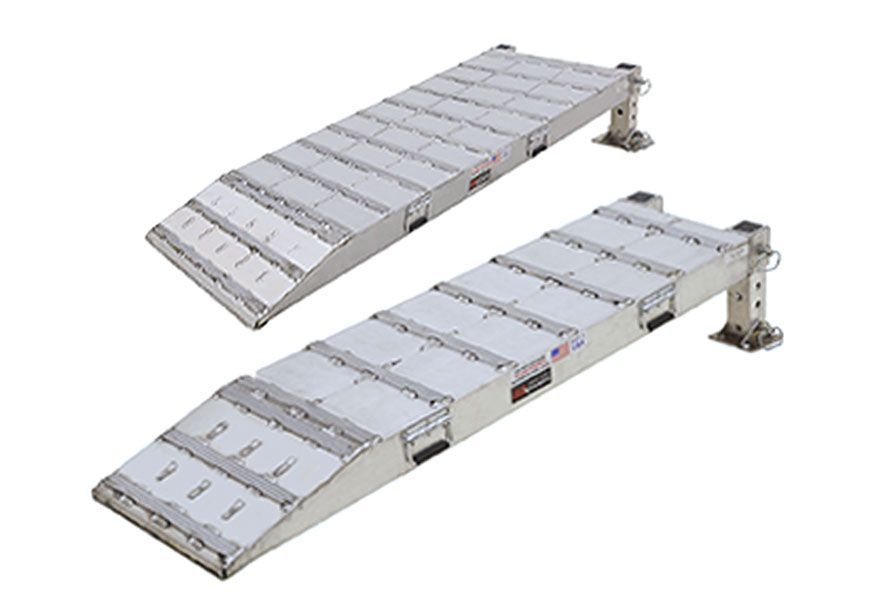

Choose the size that works best for the trailers at your facility
These risers are available in two lengths - 66" and 90" - to accommodate single axle or tandem axle trailers. The two width options work with single wheel set ups (18" W), or tandem wheels (27" W), to ensure that no wheels are left hanging or unsupported.
